Dial

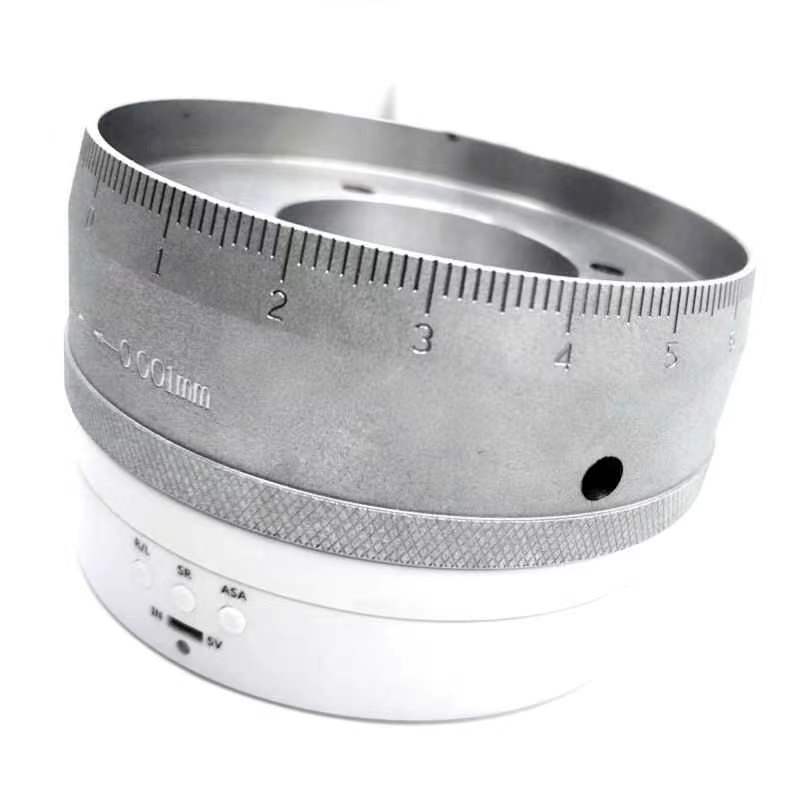

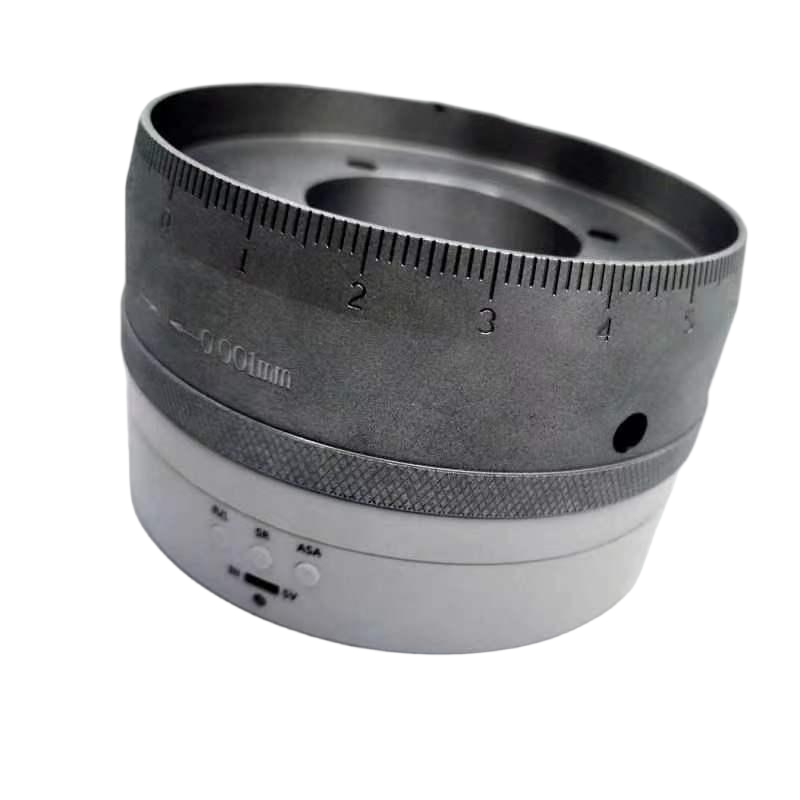

Customized production machinery parts, dial, aluminum alloy digital dial, indexing dial
Material: AL6063 aluminum alloy
Process: CNC lathe machining, five axis CNC machining, sandblasting, oxidation of natural color
Applied to: mechanical parts, grinding machines, wire cutters, grinders, handwheels, etc
Size: D80 * 55



High precision aluminum alloy indexing disc, mechanical indexing disc, CNC machine tool modification accessories
Ganyuan Hardware focuses on customized production of high-precision mechanical parts, and its aluminum alloy digital discs/indexing discs are exemplary works of precision manufacturing. This product is made of high-quality aluminum alloy material and is integrally formed by a precision CNC machining center, ensuring the high strength, lightweight, and excellent dimensional stability of the disc body.

Product description

Production Type Customized production and processing Material AL6063 aluminum alloy
Workmanship CNC lathe machining, five axis CNC machining, sandblasting, oxidation of natural color Applied to Mechanical components, etc
Size

D80*55

 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; Brass parts
Management system certification

ISO 9001:2015

 Production capacity

 100000




 High precision aluminum alloy indexing plate is the core tool for upgrading and transforming CNC machine tools. Its core advantage lies in its extraordinary precision performance. It adopts a high-grade worm gear transmission system and undergoes precision grinding and matching to ensure that the precision of indexing and positioning is stable within ± 15 arc seconds, effectively meeting the strict requirements of complex processes such as high-precision milling, drilling, and tapping.

The disc body is made of aviation grade aluminum alloy material and is integrally formed through a CNC five axis machining center. While achieving lightweight, it ensures extremely high structural rigidity and stability, and can withstand larger radial and axial loads, effectively suppressing vibration during the machining process.



The disc body is made of lightweight and high-strength aluminum alloy, which reduces the additional load on the machine tool spindle and is conducive to high-speed operation. Humanized design is reflected in the dual scale ring, which provides intuitive mechanical scale display and high-resolution digital display reading, making it convenient for operators to quickly locate and accurately verify.



Internally, a pre tensioned clearance structure is used to effectively eliminate the reverse clearance of the transmission, ensuring accurate positioning in both forward and reverse directions. In addition, the optimized sealing structure can effectively prevent the invasion of cutting fluid and iron chips, ensuring the long-term stable operation of core transmission components, and is an ideal choice to improve the efficiency of the automatic production line indexing station.



ꁆ ꁇ

Five axis CNC workshop

The factory covers an area of approximately 2000 square meters and has mastered core processing technologies. Equipped with high-end precision production equipment, CNC precision: CNC lathes, five axis CNC, four axis CNC, stamping equipment, die-casting equipment, and other 2.5-dimensional testing equipment.

We strictly control every step from design drawings to finished product delivery. Select high-quality aluminum alloy materials such as 6061 and 7075 to ensure that the parts have excellent strength, lightweight, and corrosion resistance. Our processing accuracy can reach ± 0.01mm, which can perfectly meet the requirements of complex structures, precise hole positions, and high standard surface treatments (such as anodizing, sandblasting, conductive oxidation, etc) .

For surface treatment, our suppliers have been cooperating with us for many years. They have rich experience and are familiar with each other's quality requirements. Stable quality and greater assurance. For example, heat treatment, painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment, hardening, laser marking, etc. can be carried out according to customer requirements. Aluminum alloy surface.

Commercial packaging:

1. Plastic bag+color box+cardboard box+pallet；

2. Industrial packaging；

3. Plastic pipes+cardboard boxes+pallets; Plastic bag+kraft paper+cardboard box+pallet; According to the customer's requirements.

Frequently Asked Questions:

Q1: Where can I obtain product and price information?

A1: Send us an inquiry email and we will contact you as soon as we receive your email.



Q2: How long can I get the sample?

A2: Depending on your specific project, it usually takes 3-7 days.



Q3: What kind of information do you need to quote?

A3: Please provide product drawings in PDF format. It would be better to provide them in STEP or IGS format.



Q4: What are the payment terms?

A4: We accept a 50% deposit. Once the goods are ready, we will take photos or videos for you to verify, and then you can pay the remaining balance. We can accept small batches.



Q5: How to deliver?

A5: We deliver the goods through a courier company.



Q6: Are you a trading company or a factory?

A6: We have 17 experienced engineers, over 50 employees, and nearly 3000 square meters of factory space.



Q7: What if we don't have the drawings?

A7: Please send your samples to our factory so that we can replicate and provide a better solution. If you send us pictures or drafts of dimensions (length, height, width), we will create CAD or 3D files for you.



Q8: Can we get some samples before mass production?

A8: Of course you can.



Q9: Is it safe to send you my drawings?

A9: Of course .



Q10: Can I learn about the operation of my product without going to your company?

A10: We will provide a detailed production plan and send a weekly report with digital images and videos to display the processing progress.



A11:  If the quality of the products you produce is poor, will you issue a refund?

Q11: In fact, we will not take the risk of producing low-quality products. At the same time, we produce high-quality products until you are satisfied.
